TST 507 Series 6 Flow Thru Sensor TPMS System with Color Display

Finally! TPMS. And no, you don’t need to install Borg stems!

Here is the background: Many people buy DIY TPMS off the Internet, and have their stems crack on the way home or after a short trip.

The reason is usually due to either a rubber valve stem, or more often, a dually valve stem extension. Either is likely to fail with (relatively) heavy TPMS screw on caps.

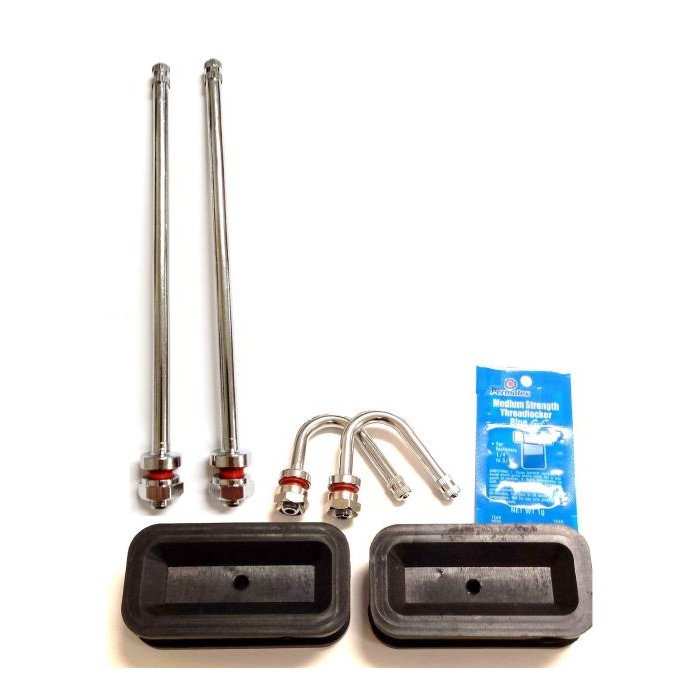

The solution is most often Borg One piece metal valve stems. These beauties replace your factory stems, make adding TPMS or checking air easier, and ought to be standard. So I actually bought this kit. This is the DL1SPAA Borg Dually Valve kit for my Alcoa Aluminum Wheels:

As you can see these are sturdy one piece metal stems. The rubber grommet or stabilizer goes in the outer dually to keep it from vibrating.

The main issue is, they are a bit of a bear to install. Tire guys don’t like to read instructions, and as a result, there are many horror stories of botched installations and stranded RVs.

And, my local Mercedes dealer wanted $300 to do the work. (My tires are fine, only 18,000 miles.) I would love to wait until I need new tires for these.

So, I started researching alternatives. It turned out that my Sprinter already has metal valve stems. The outside dually stem is just facing the wrong way. The inner dually has a long metal stem and a metal extension threaded on to that.

I saw posts here and there about skipping the Borgs, and it inspired to give it a try. After all nothing would be lost and I can always install the Borgs later if I’m not satisfied.

Note that the impetus of this delay is that my Sprinter never needs air. Literally. (I believe the occasional drop in 1 lb. is due to me checking air before each trip.) So if my project makes it a bit harder to add air in the future so be it.

So lets get started!

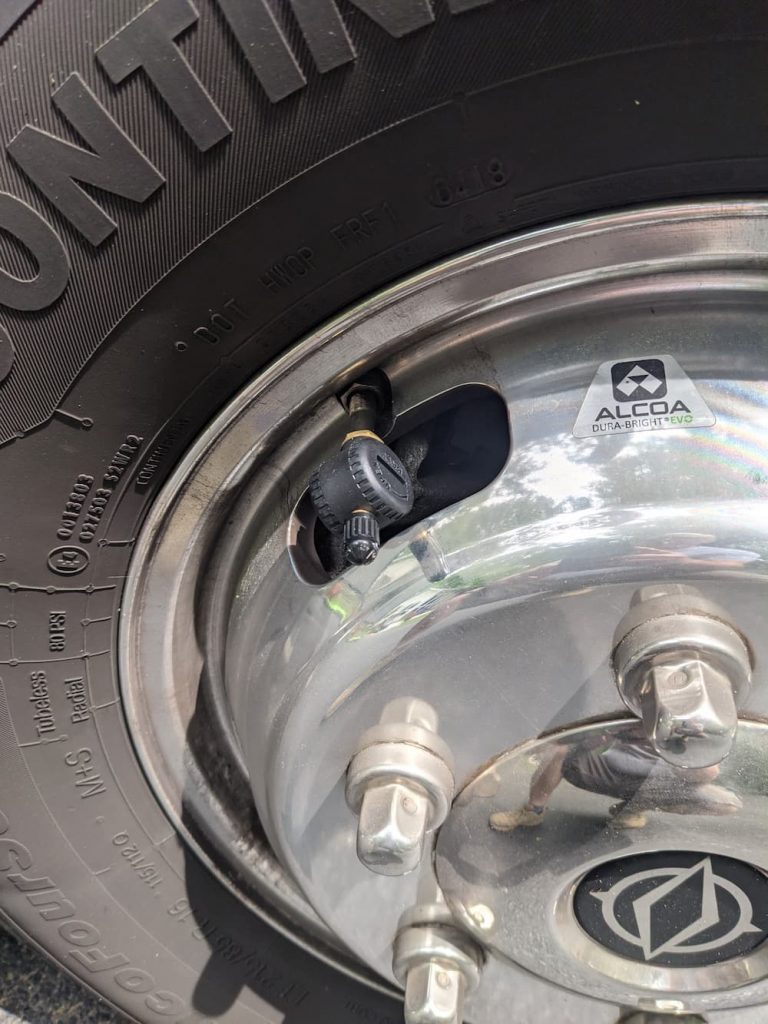

First, the front wheels. Well that was easy. Since the factory stems are sane, you just thread them on with the locking nut per instructions.

Two down.

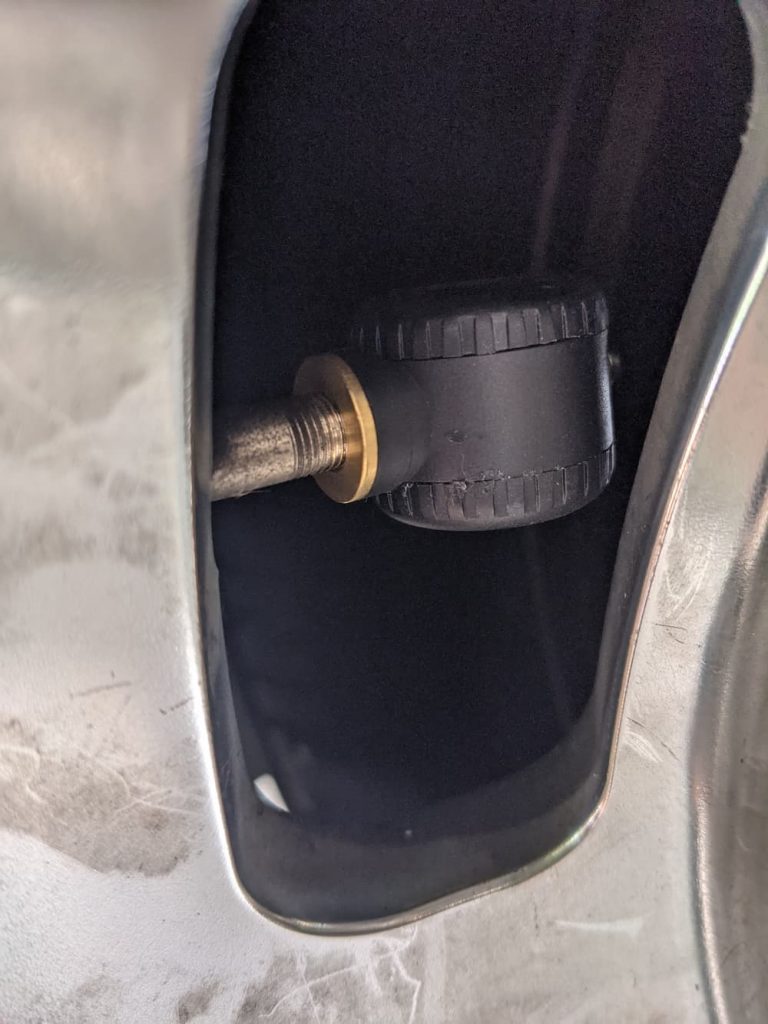

Next, I tackled the outer duallys. This was relatively easy too. Just thread them on, and skip the locking nut. The locking nut is an anti-theft device; they will not fall off without them. (I could have used the locking nut, but since I will have to remove them once or twice a year to add air it didn’t seem worth the bother.)

Note that I might just as well have applied the non flow-through sensors here – but I may want to get the Borgs installed with my next set of tires, so I purchased flow-throughs.

Four done.

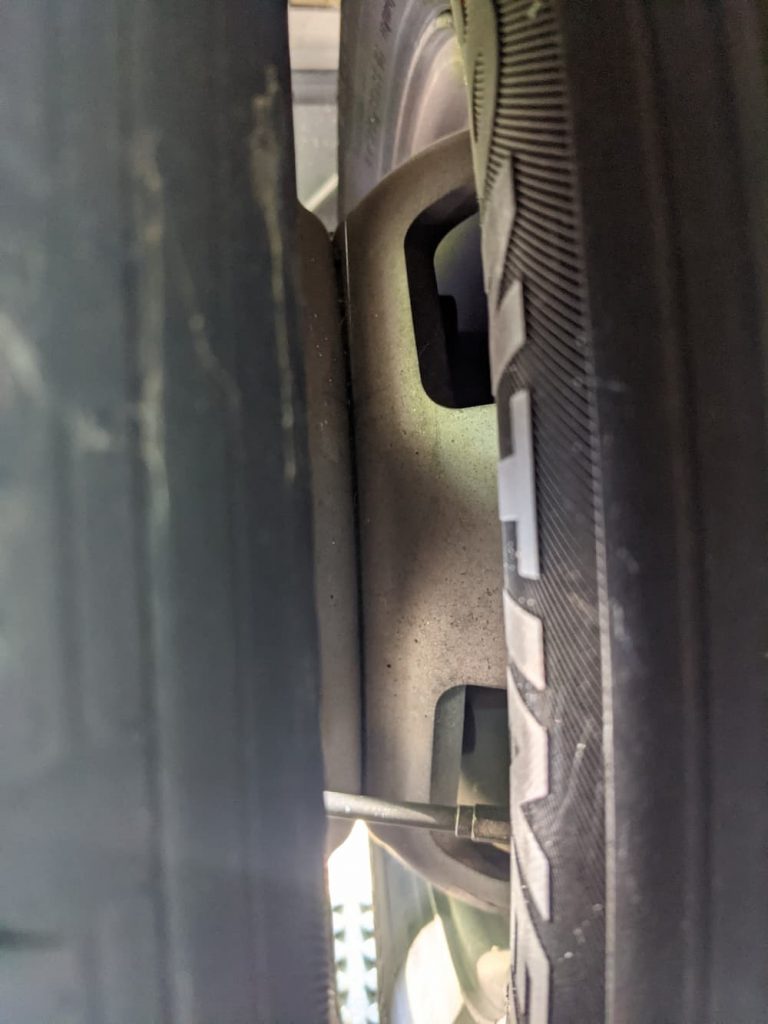

And finally the inner duallys, which I was scared of. I assumed the extensions would be hard to remove, but I was wrong. It turns out if you stick your head between the tires you can just see the nut that is the base of the extension:

In the photo above near the bottom you can just see where the extension starts. Its an oddball size but an 11 mm or 7/16 SAE wrench was good enough for me. (They are slightly too large, so I am guessing its maybe 13/32 or something.)

They practically fell off with about 1/8 turn from my wrench which I could just barely reach in with.

(Note that the wrench was not my first choice. Because I had assumed the extensions would be hard to remove I actually bought a Truck Extension Service Tool thinking I could just reach in and remove them. Nice try, but mine are cocked at an angle that I couldn’t get the tool in.)

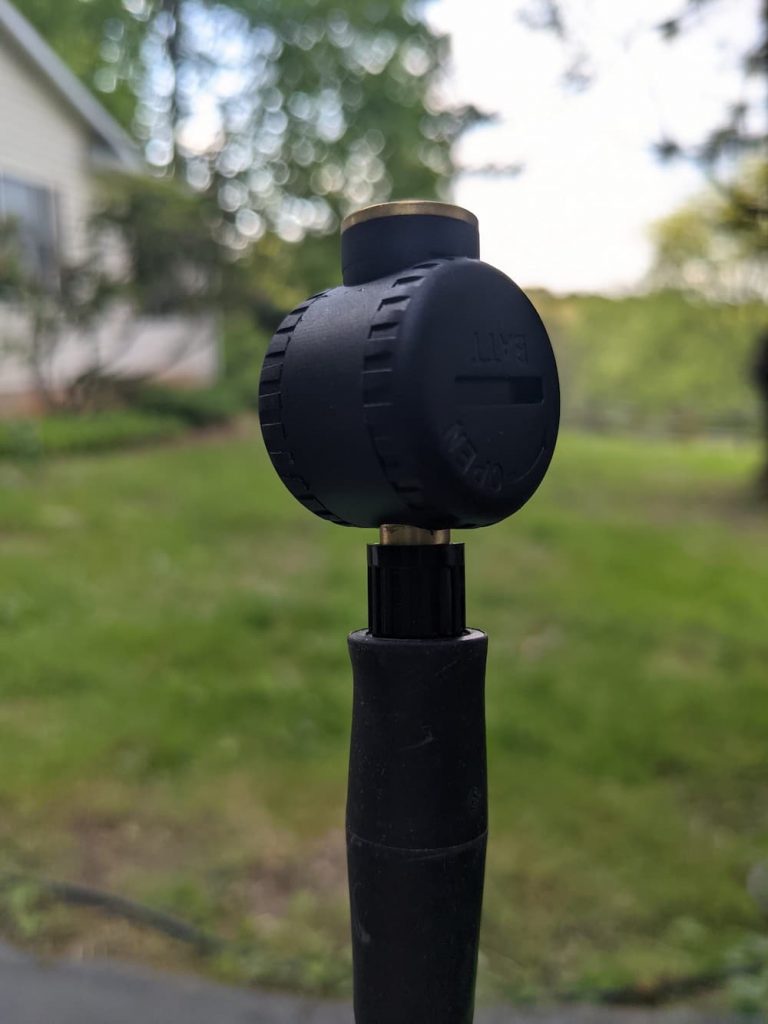

Once they were off, because I had planned the install, I used the Ken-Tool KEN29999 Valve Capper PRO (Amazon links below) to stage the TST sensor cap and (fairly) easily thread it on.

As you can see this tool is designed to remove the valve caps from inner duallys. In fact, it works so well that I now wonder why LTV even bothered to mount the metal extensions. With a standard dually chuck you can easily remove the cap and add air if you have this nifty tool. (Even if I didn’t have TPMS caps I probably would not reinstall the extensions.)

But, using it backwards from its intended purpose, I used it to start the threading which, again, was relatively easy.

Lastly I could (just) get my fingers in the wheel slot and tighten the sensor cap. It was a bit tricky because I have short fingers but I got better at it by the second dually.

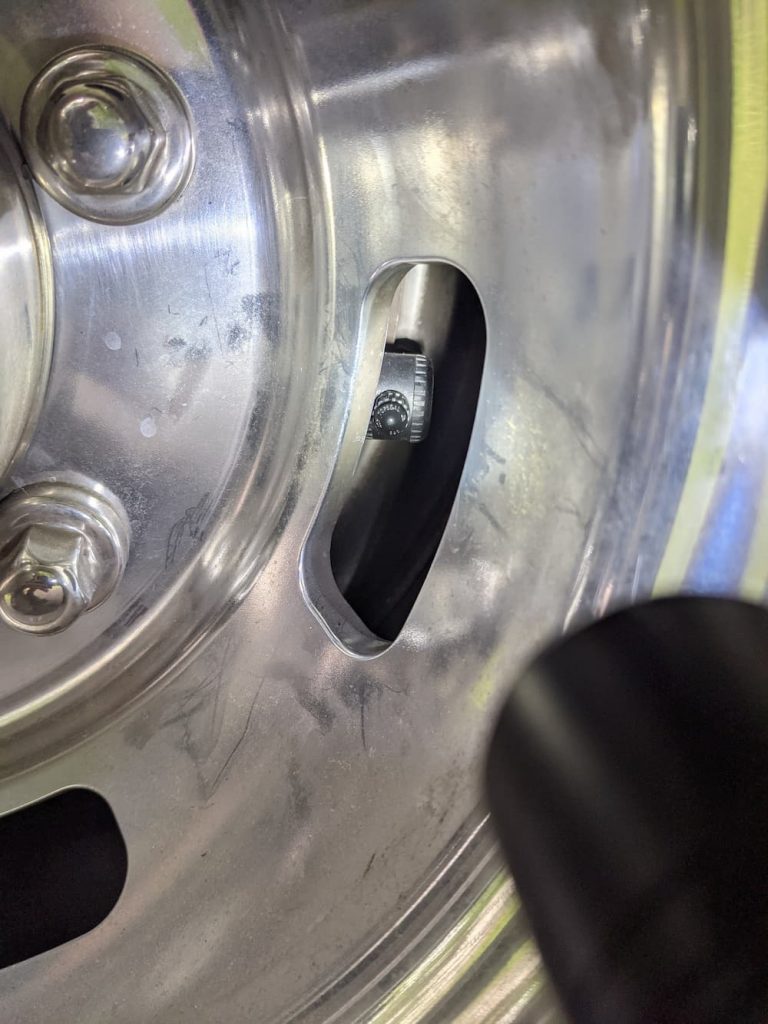

So the inner duallys now look like this:

You would think I would shine up my wheels for these pictures, but heh, its my blog…

As you can see the sensor cap is about an inch back. I could remove the cap to add air but the Ken-Tool makes it much easier.

So just like that, its done! The only cap that will have to come off to add air is the outside dually, which is quite easy to remove. The inner dually should be easy to add air with a standard offset head dually chuck, and of course the front too.

I can easily reinstall the extensions if (for some unimaginable reason) I wanted to.

Now I can enjoy my TPMS without worrying whether some tire guy read the Borg instructions thoroughly or not. Will I ever install my Borg stems? I am not so sure now. Once a year I’ll have to remove the caps to replace the batteries. Based on my experience so far it looks like about a one hour job if that.

Update: May 2021

Well its literally only been a few days. Normally when I install something I have buyers remorse. Could I have done it better? Is a better part available? In this case, I’m still really pleased. Yet another Borg Horror-show on Facebook makes me think I made the right decision.

So, one of the inner duallys was low by one pound. I try to keep all of the tires at 62. Now one pound is probably within the margin of error, and not even worth opening the toolbox over, but I was interested to see how easy (or not) the inner dually would be.

I had previously noticed that my “straight” dually chuck probably would not work. The outer wheel is a bit in the way. So I looked on Amazon for an offset dually chuck (Amazon link below) and got same day shipping (bless you Amazon) and,

It was a piece of cake! Used a flashlight to be sure, but popped the air cap off with the Ken Tool (could have used my fingers) and pressed the dually chuck straight at the flow through cap, and topped it off in 2 seconds.

If you look at the chuck I used below you’ll notice it has a small head and is offset so it easily slips behind the wheel.

Update: March 2023

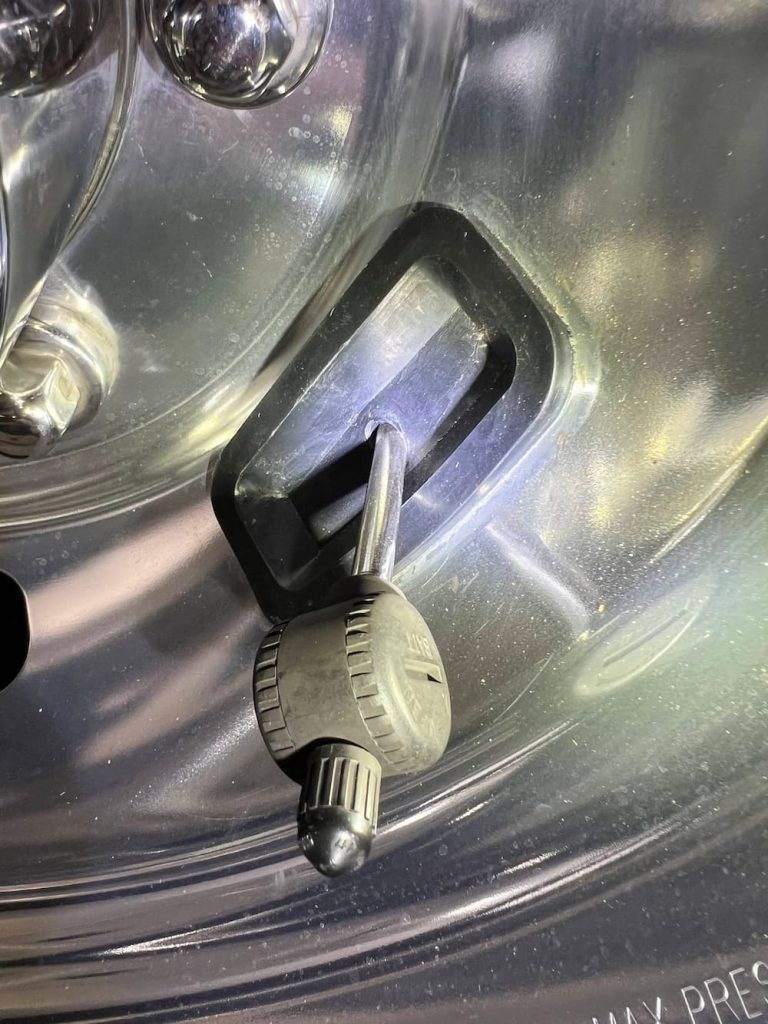

Well that was super great for 2 years! I needed new tires though at 37,000 miles. I could have gone a bit more, maybe low 40s for sure, but wanted to get 6 Michelin Agelis tires before we left. So it seemed to make sense to go ahead and get the Borg stems.

I let Tampa Mercedes do them, and they seemed to have done a great job. I lectured them beforehand about the special plastic cap nuts on the Alcoa wheels and the need to read the Borg instructions carefully. Form what I can see so far, it appears they did.

This will make changing the batteries or adding air even easier. I’ve also linked the Borg one pieces stems below.

Here are the parts I used.

(Links are Paid)


9 thoughts on “TST 507 Series 6 Flow Thru Sensor TPMS System with Color Display

  1. Great article thank you for the write up and your experience with this TPMS system. We ordered the same system but without the flow through valves. I’ll follow your lead and remove the extension.
    Cheers
    Stuart

    1. Thanks Stuart, I appreciate the feedback! Good luck with the install; its surprisingly easy.

      Steve

  2. Great article. I also have the metal stems on my 2020 unity. To keep it a little simpler, I will install the TST on the front, and the outer rear. With the extensions on the inner it will be easy to check the tire pressure. This will still give me a large degree of protection without the hassle

  3. Thanks Ed!

    Are you saying you intend to install them on the extensions? Others have reported that causes a stem failure after a couple thousand miles.

    I actually find the inner dually easy to fill now with the extensions removed, but the outer a pain as I have to remove the sensor.

  4. Great article. Looks like I may forego the Borgs. Curious why you need to remove the cap on the rear outer to add air, are you unable to reach it with the combination air chuck?

    1. Bob – yes exactly. The outer dually a with the flow through sensors – the chuck can’t reach. I’ve only had to remove once a year to add air though, so not terrible.

  5. Any update on how this is “borg-less” setup is working? I’m thinking that I am going to try what you did using the flow through TPMS and forego the Borg stems until I need new tires.

    1. It’s been over a year and still works great – no problems. The only tiny issue is that once or twice a year when they need a little air, the outer duallies require me to remove the tpms. Adds a few minutes to the task but not that hard.

      1. Thanks for the quick reply. That’s the report that I was hoping for (no problems). Removing the outer dually sensors a couple of times a year seems like it should only be a minor inconvenience. So far my experience is like yours – I rarely need to add air.
